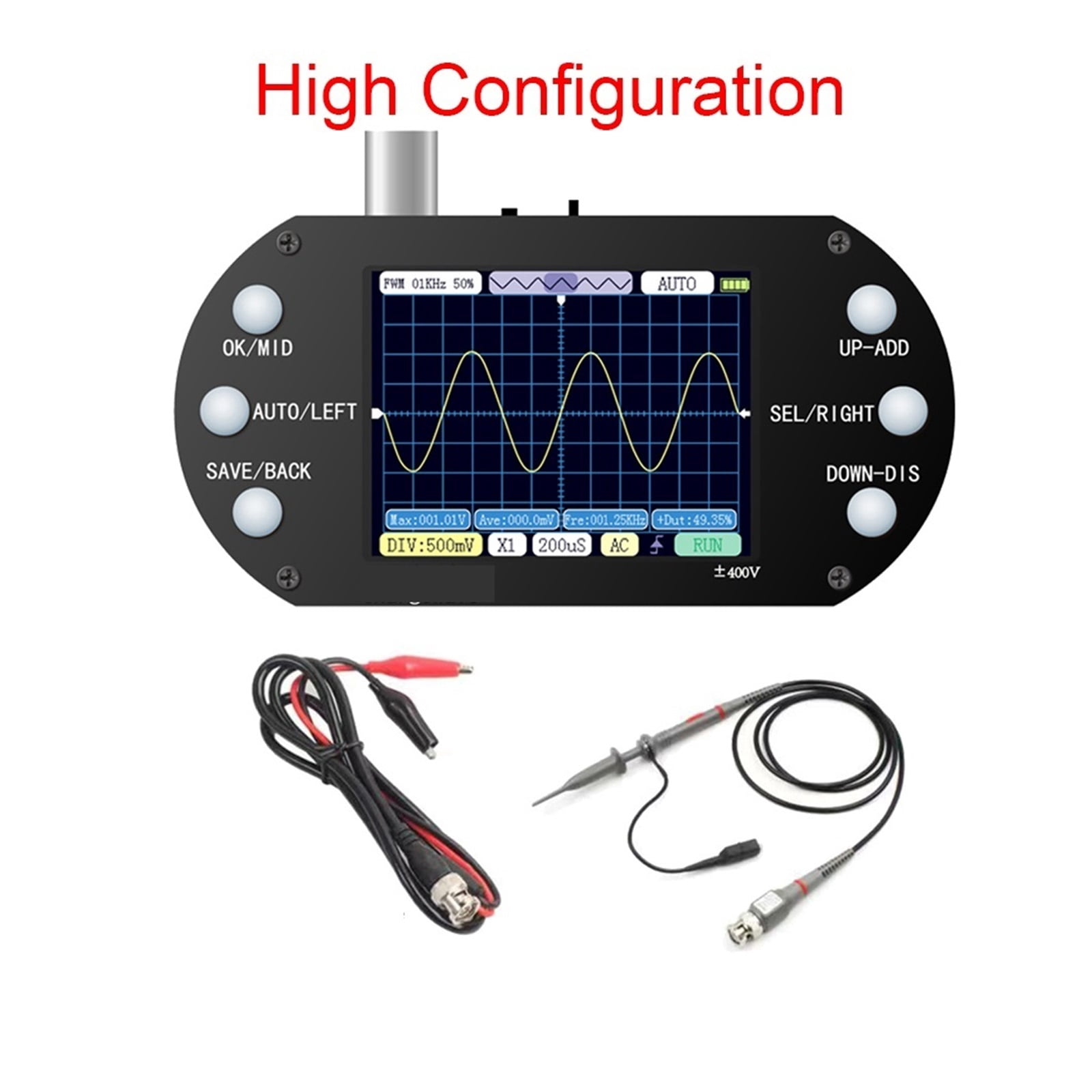

2.4inch Display Handheld Digital Oscilloscope 320*240 Resolution 2.5MHz Sample Rate 500KHz Bandwidth Oscillometer ,Professional Designed

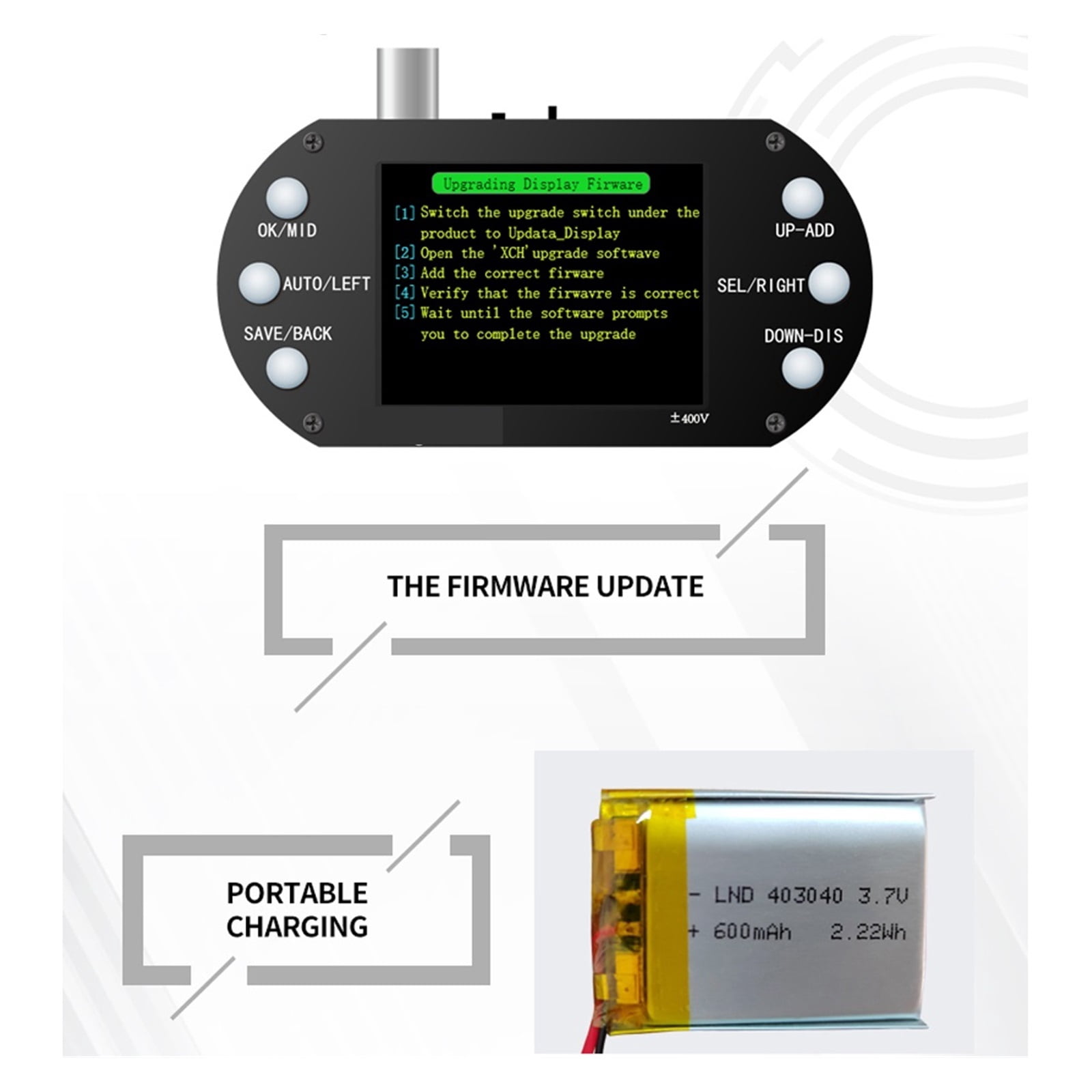

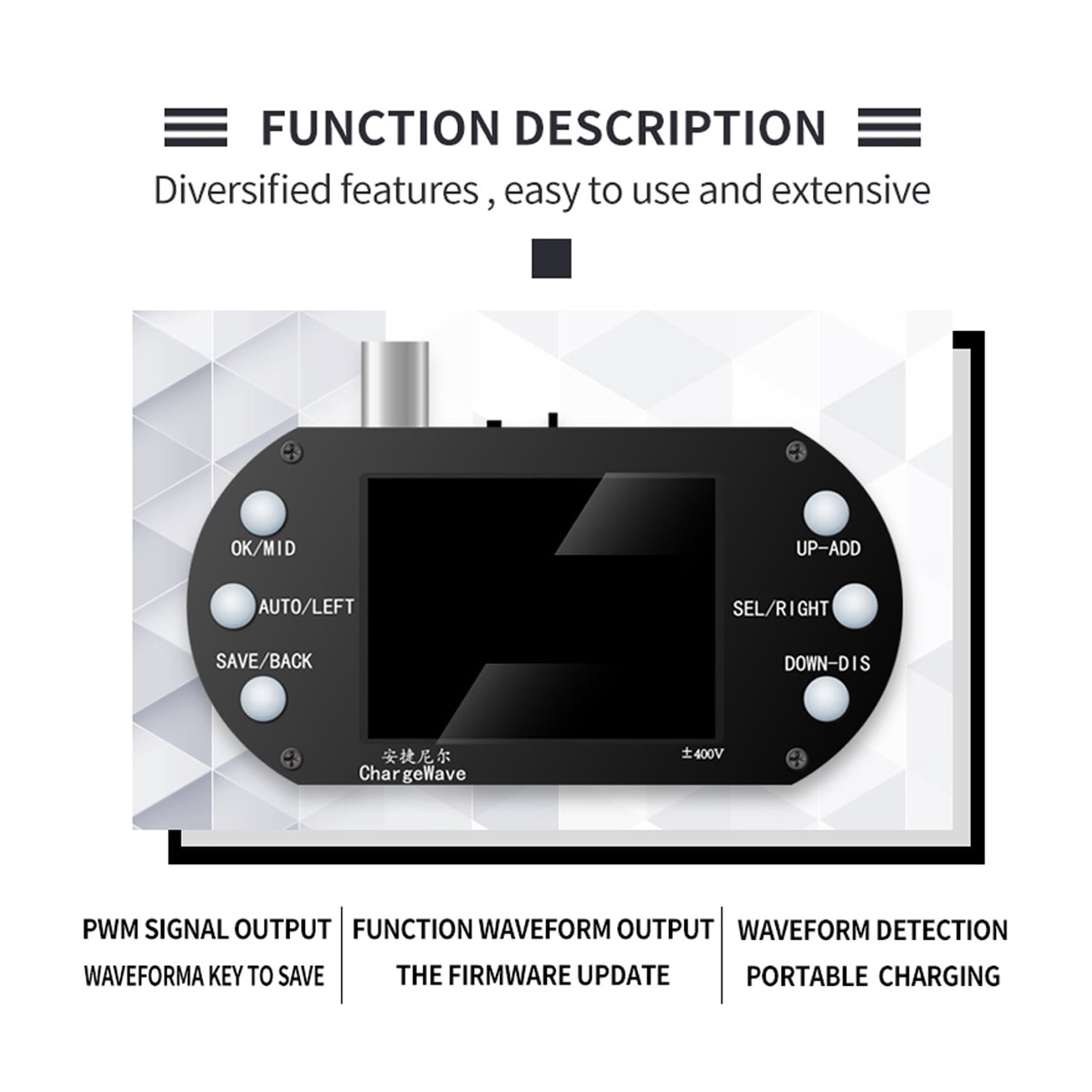

<p>Features:</p><p>Waveform measurements display functions that can be used to detect sinewaves, square waves, half-waves, etc.</p><p>With one-button waveform saving feature. Only the part of the waveform that is currently being displayed can be saved.</p><p>Widely applicable, it can be used in a wide ranges of applications such as automotive maintenance, appliance maintenance, teaching, and research. </p><p>Note:</p><p>Some of the measured signals cannot be correctly captured with AUTO and need to be adjusted manually.</p><p>Firmware upgrade: To upgrade the display part, press OK to turn on the machine, to upgrade the bottom part, press SAVE to turn on the machine.</p><p></p><p>Specifications:</p><p>Name: Handheld Oscilloscope</p><p>Material: plastics</p><p>Type: standard configuration, high configuration(optional)</p><p>Rate of adoption: 2.5MHz</p><p>Analogue bandwidth: 500KHz</p><p>Actual bandwidth: 200KH</p><p>Input impedance: </p><p>Depth of storage:1Kb</p><p>Parameter type:12</p><p>PWM output:</p><p>Frequency: 1K-80KHz</p><p>Duty: 0-100%</p><p>Voltage: 3.3V</p><p>Function: 17 Waveforms</p><p>Output:</p><p>Frequency: 1-1KHz</p><p>Voltage ranges: 0-3.3V (fix)</p><p>Charging voltage: 5V</p><p>Upper computer: Not supported for now</p><p>Firmware upgrade: Support</p><p></p><p>Display handheld digital oscilloscope, Oscilloscopes, Electronic Measuring Instruments, Measurement &amp; Analysis Instruments</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

• Equipped with a 2.4-inch TFT display, 320*240 resolution, you can see the measurement data displayed on the screen.

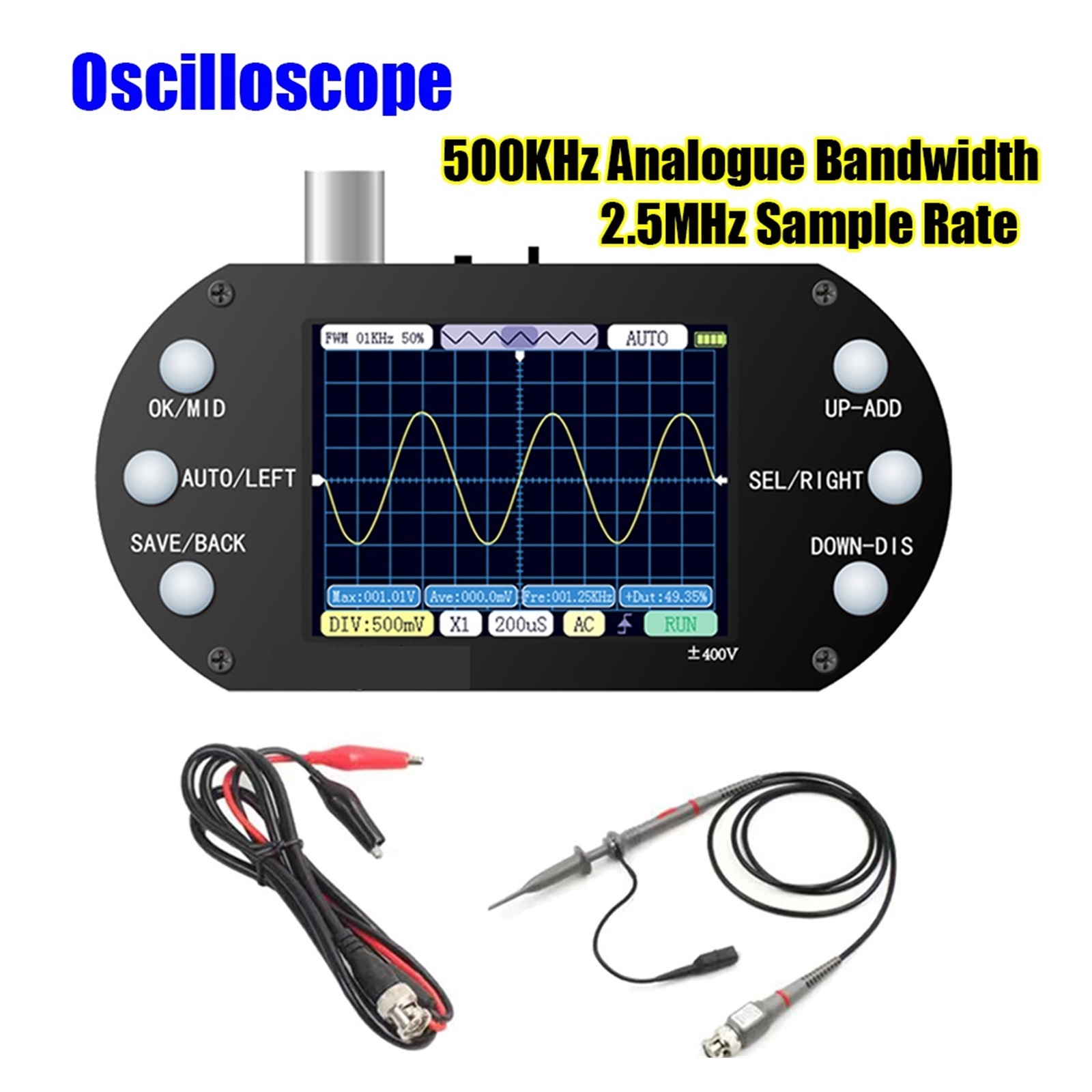

• 2.5MHz sample rate, 200KHz actual bandwidth, 500KHz analogue bandwidth (sinewaves).
• With complete trigger function (single, normal, automatic), no matter for periodic analogue signal or non-periodic digital signal can be used freely.
• The measurement of the voltage signal
• The efficient one-k AUTO function displays the measured waveform without tedious adjustment.
